DRAINFIX BLOC infiltration rainwater | trafficked areas
IDEAL FOR: infiltration of rainwater with large volumes and highest loads, especially beneath busy traffic areas such as commercial zones, industrial areas and private properties.
YOUR BENEFITS WITH DRAINFIX BLOC
HIGH LOAD CAPACITY
- can be used in different load capacities according to requirements
- for lorry traffic in commercial areas
- up to SLW 60 according to installation type
= Performance assured
UNIQUE CONNECTING TECHNIQUE
- no accessories necessary

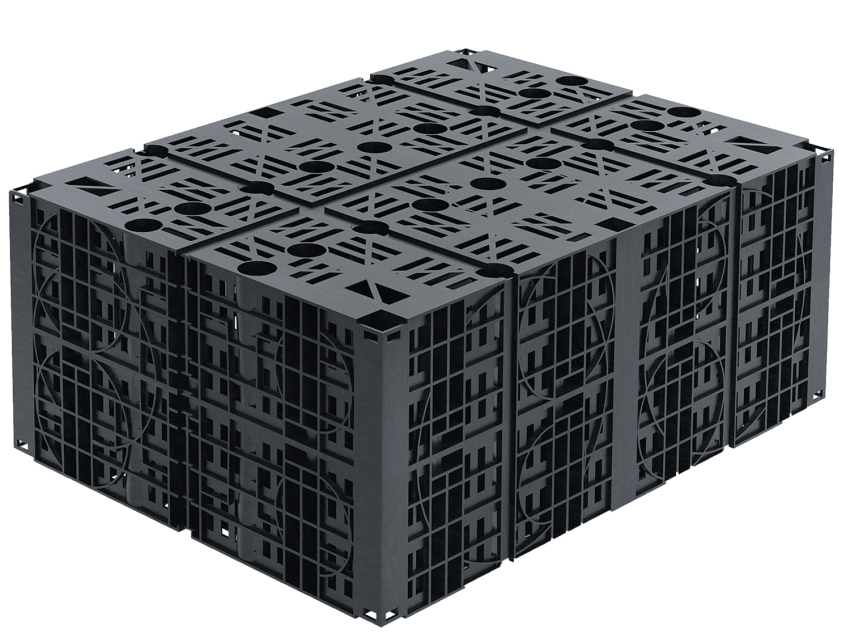

- DRAINFIX BLOC elements are simply connected together
- stable connection technology in vertical and horizontal directions
= Time savings | Cost savings | Uniqueness
VERY HIGH STORAGE CAPACITY
- large storage volume: > 90%
= Performance assured

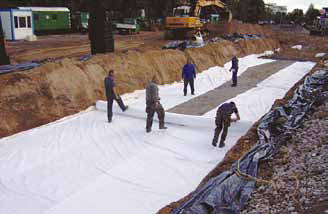

FUNCTIONAL SECURITY WITH GEOTEXTILE
- covering of the DRAINFIX CLEAN elements with geotextile
- geotextile= PP fleece GRK 3
(weight: 200 g/m2) - no infiltration of dirt or soil particles --> guarantee full infiltration performance
= Performance assured | Longevity
COMPLETE SYSTEM SOLUTION
- Trench:
DRAINFIX BLOC Elements - Geotextile:
protects the infiltration trench from fine materials - Rainwater treatment plant:
individually dimensioned plant for filtering of dirt particles - Control shaft:
for inspection, cleaning and maintenance of the infiltration system
= Performance assured | Quality assured | Uniqueness
MINIMAL LAND USAGE

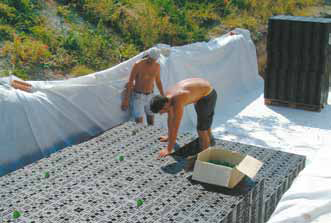

- assembly in several layers possible (depending on the type of soil)
- e.g.: with SLW 60, 5 or more layers can be formed (depending on soil type and overlap)
- minimised size of the construction site and land consumption
= Cost savings | Uniqueness

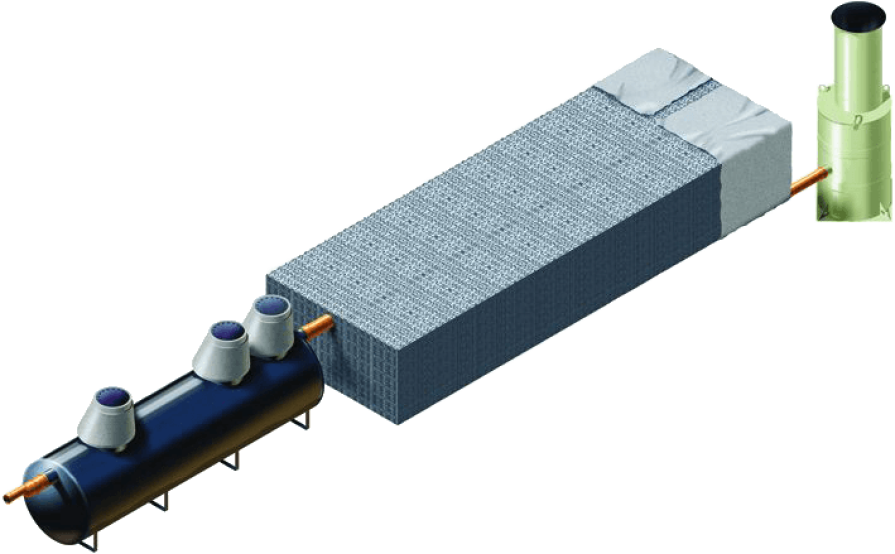

THE SYSTEM IN DETAIL
DRAINFIX®BLOC sedimentation- and filter plant
DRAINFIX®BLOC infiltration ditches
Geotextile
DRAINFIX®BLOC inspection shaft
