Facade Drainage | Terraces, facades & flat roofs

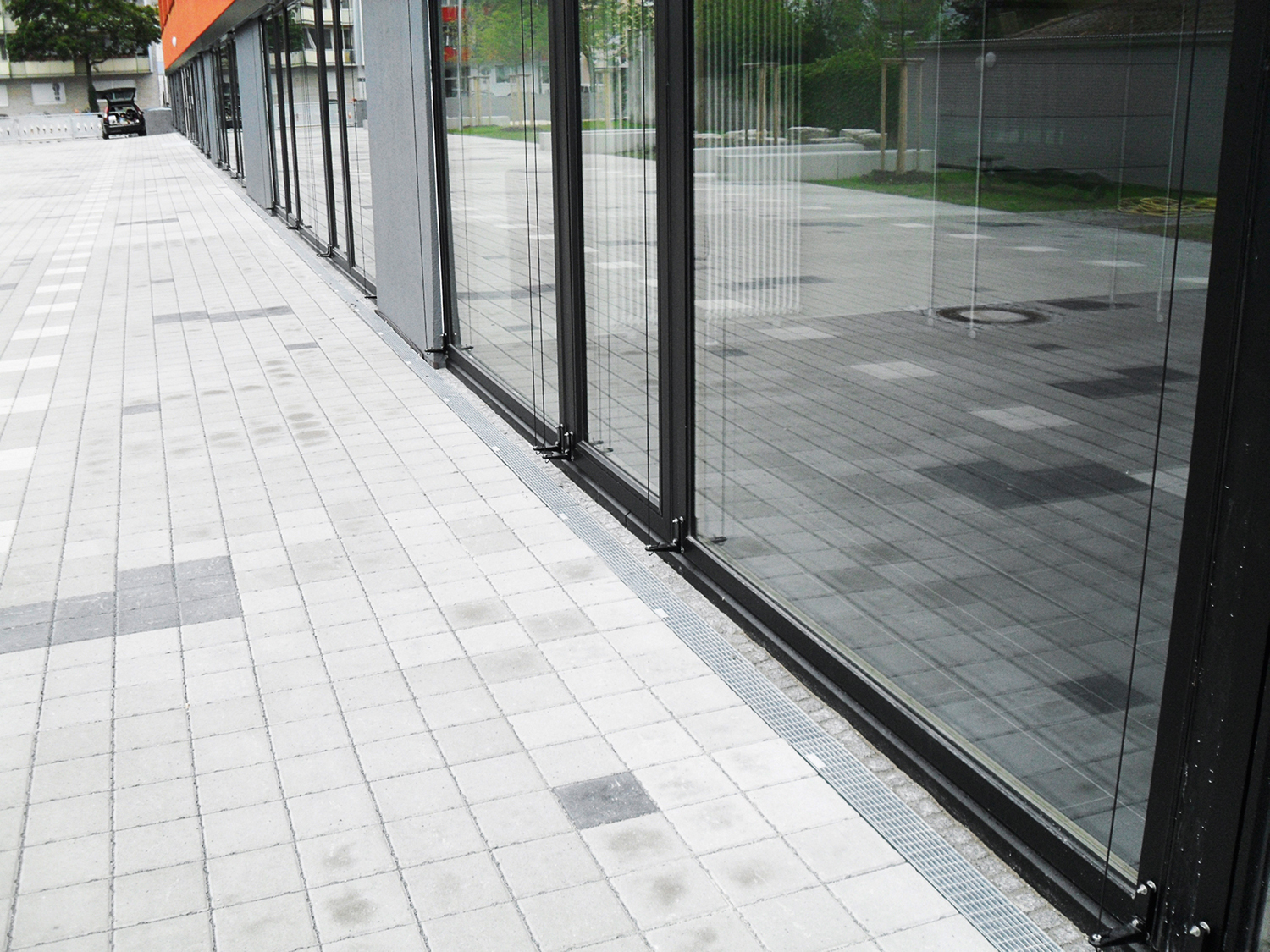

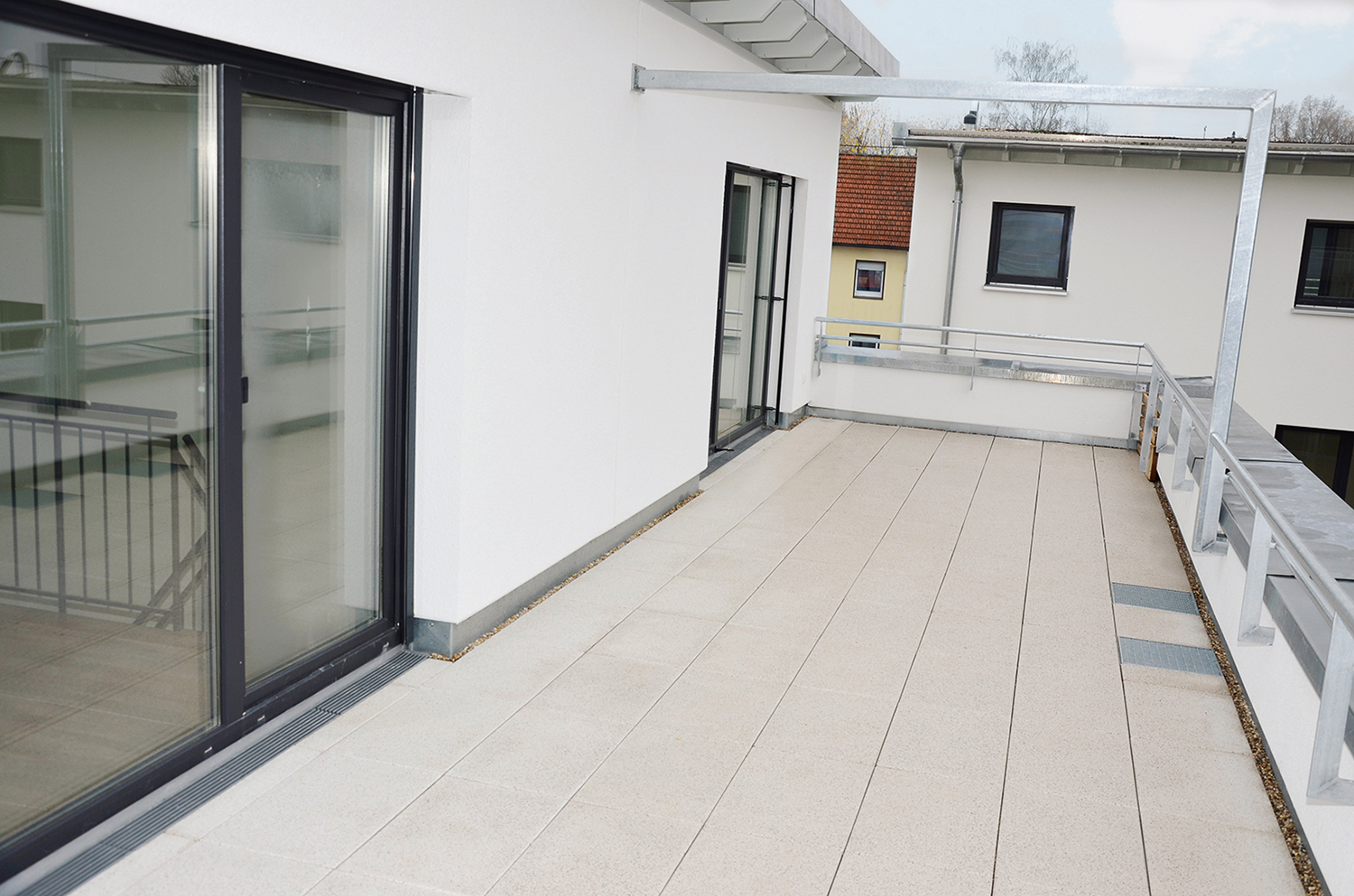

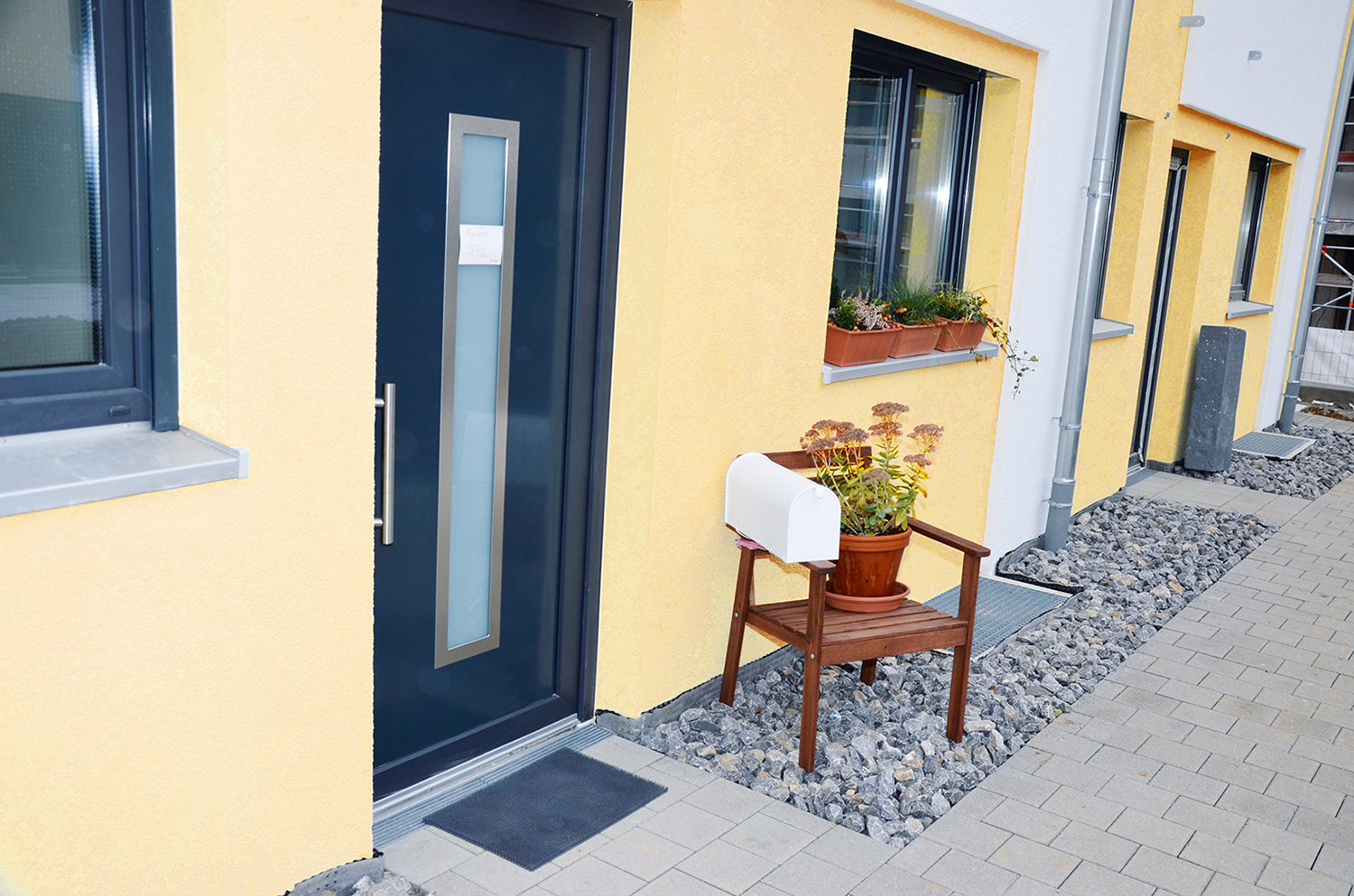

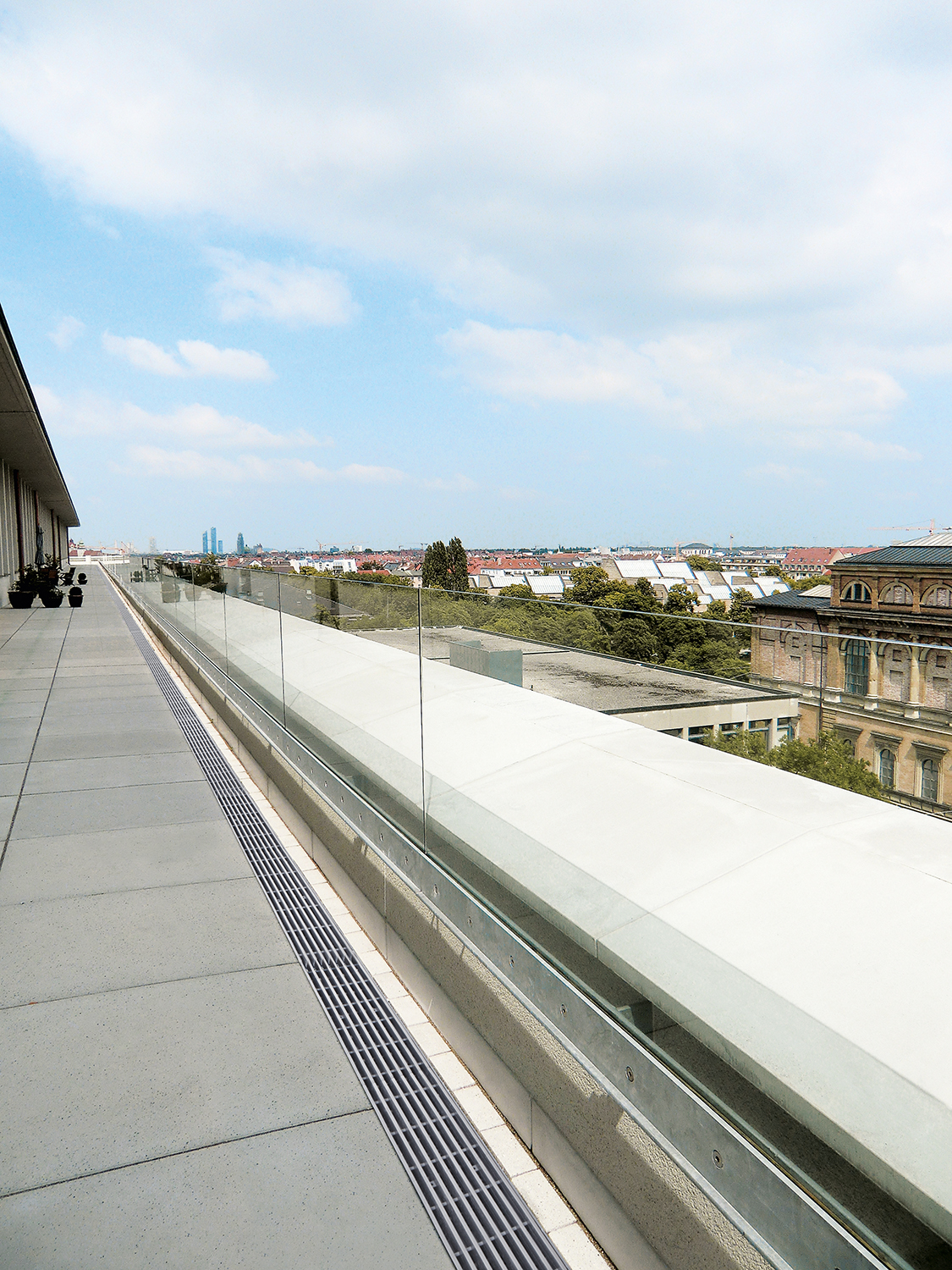

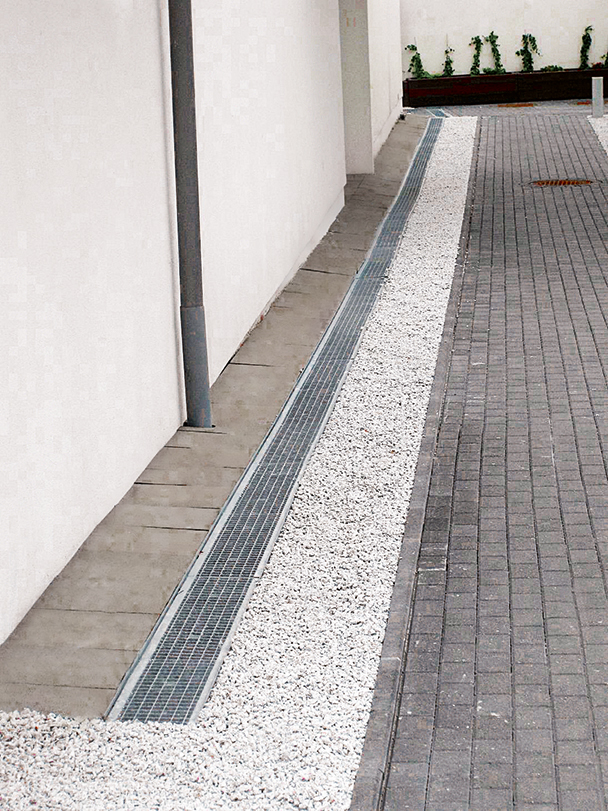

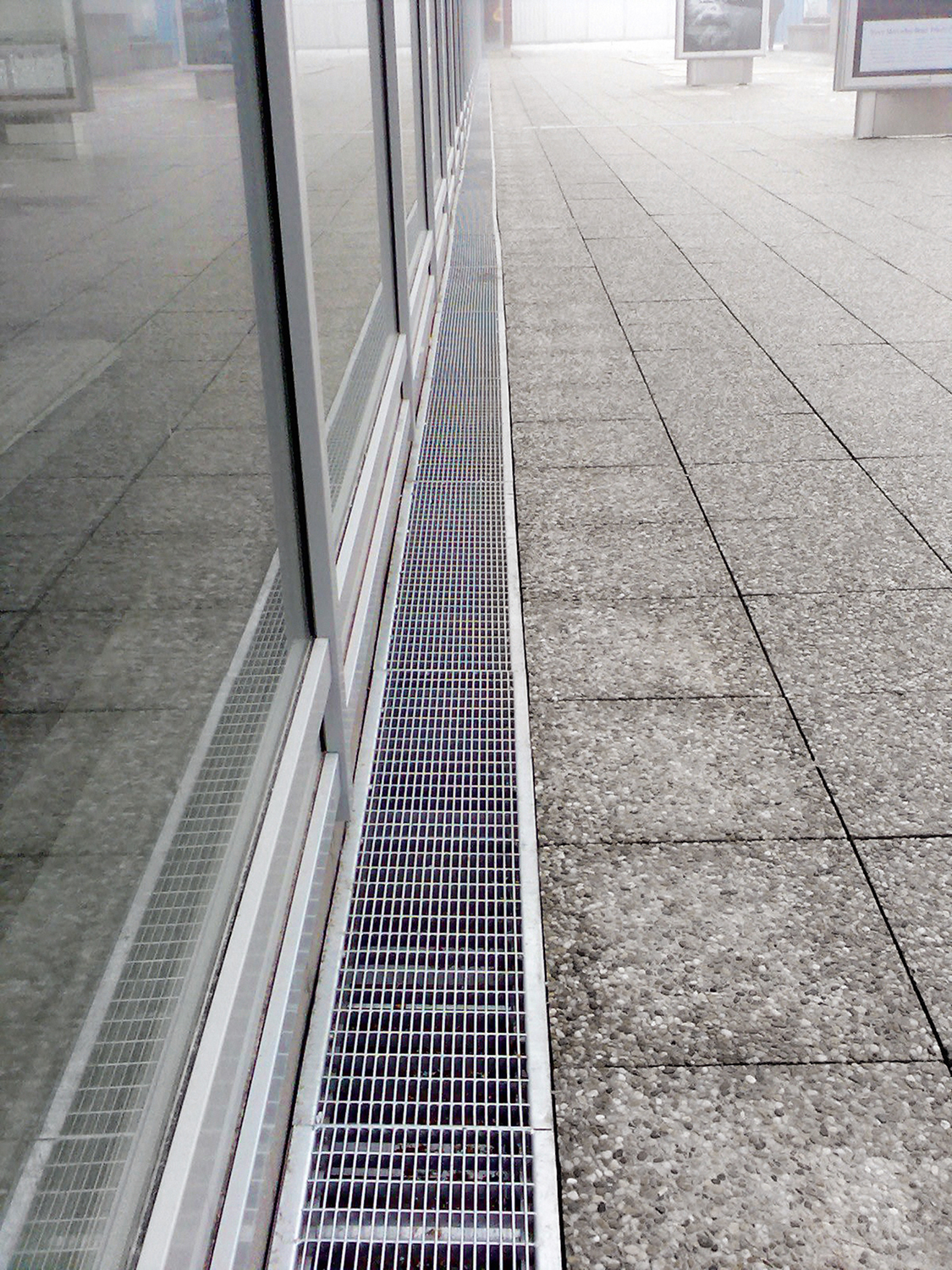

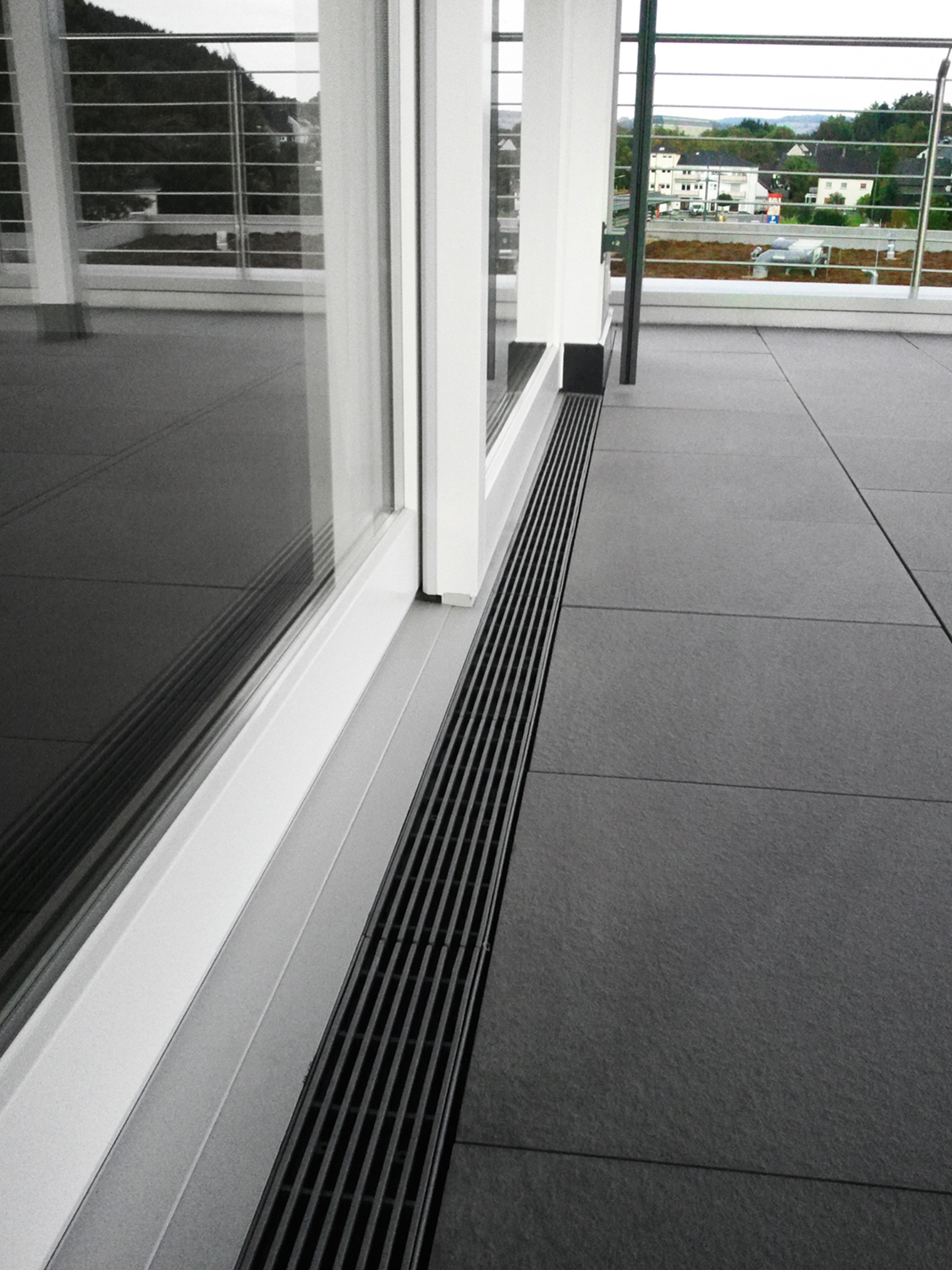

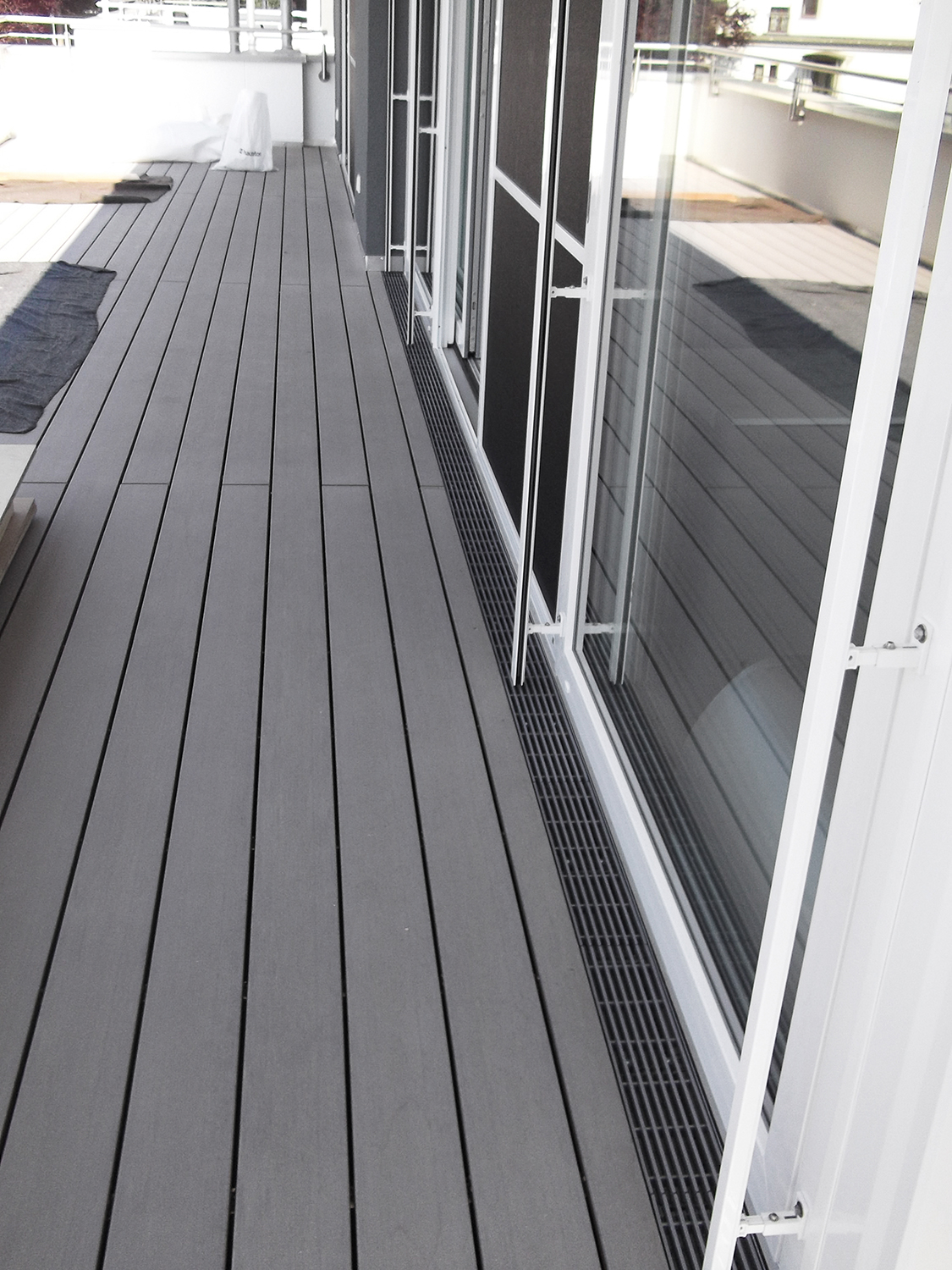

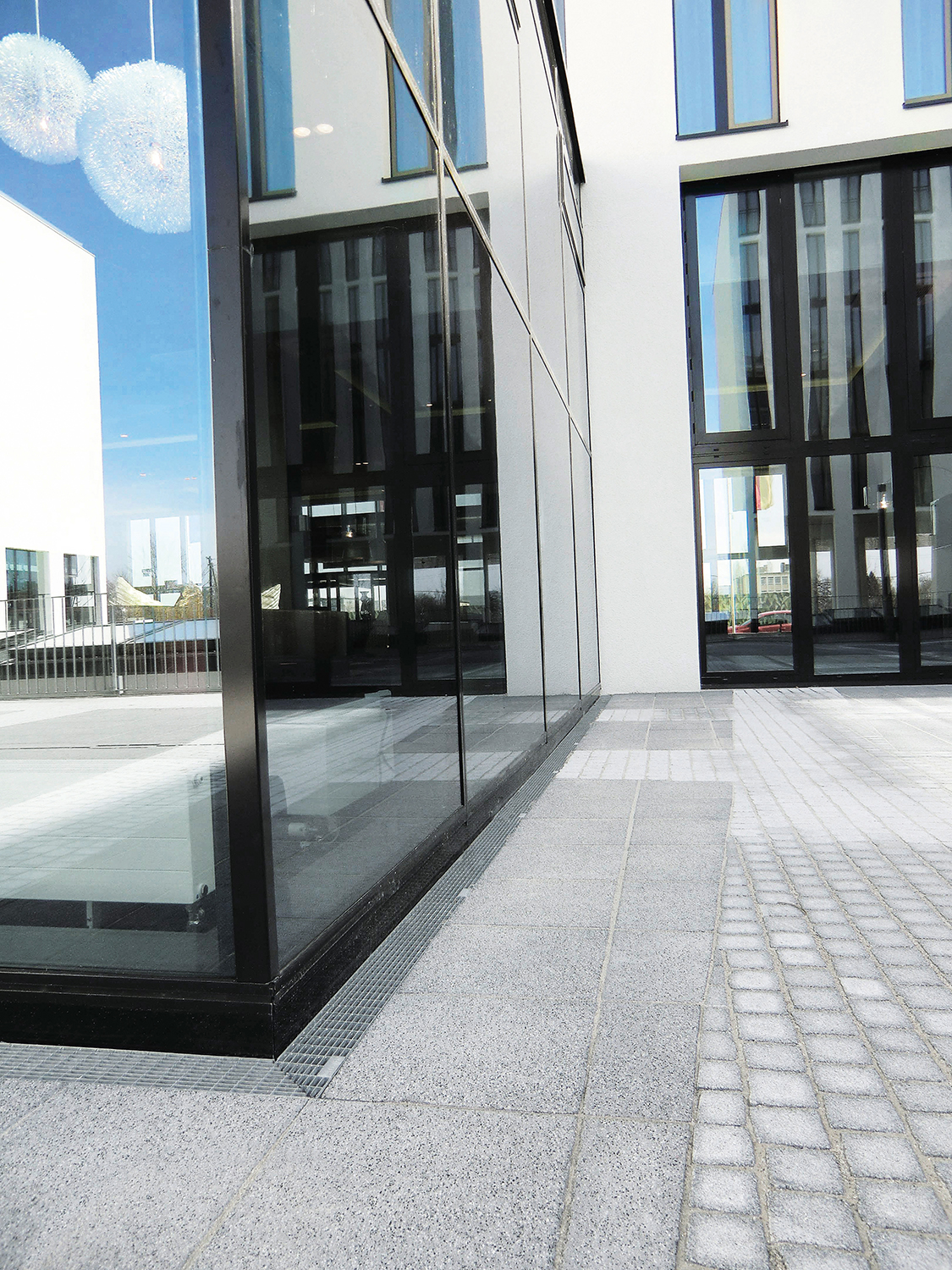

IDEAL FOR: facades and flat roofs. The channels permanently protect buildings from standing or pressurised water.
YOUR BENEFITS WITH DACHFIX STEEL
ONE PRODUCT RANGE FOR ALL INSTALLATION SITUATIONS
= Performance assured | Design Flexibility
ONE PRODUCT RANGE FOR ALL INSTALLATION SITUATIONS
- five widths: 115 mm, 135 mm, 155 mm, 205 mm and 255 mm
- four heights: 45 mm, 75 mm, 100 mm and 150 mm
- accommodates large volume of water/ melt water
= Performance assured | Design Flexibility
REMOVABLE SECTION IN BASE
- connection: DN 75 and DN 110
= Cost savings | Design Flexibility
PRACTICAL HEIGHT ADJUSTMENT
- easy adjustment on uneven surfaces
- simple handling with 2 set screws
- placeable at several positions in the channel
= Design Flexibility
NUMEROUS GRATING OPTIONS
- made of recycled composite, galvanised steel, stainless steel
- aesthetic mesh and longitudinal gratings
- customised gratings available
= Design Flexibility
UNIQUE END CAP
- easy to fix with clip function
= Cost savings
SPECIAL LOCKING HANDLE SYSTEM
- locking handle for:
∙ easy connection of channel elements
∙ additional fixing option of grating - locking handle can be retrofitted at any time
= Performance assured
EASY CONNECTION OPTIONS
- direct connedirect connection via removable section in base (DN/OD 75 + DN/OD 110) ction via removable section in base (DN/OD 75 + DN/OD 110)
- drain box outlet in substructure; vertical or horizontal connection
- via cross-intersection channel to DACHFIX®POINT
= Design Flexibility | Cost savings | Performance assured

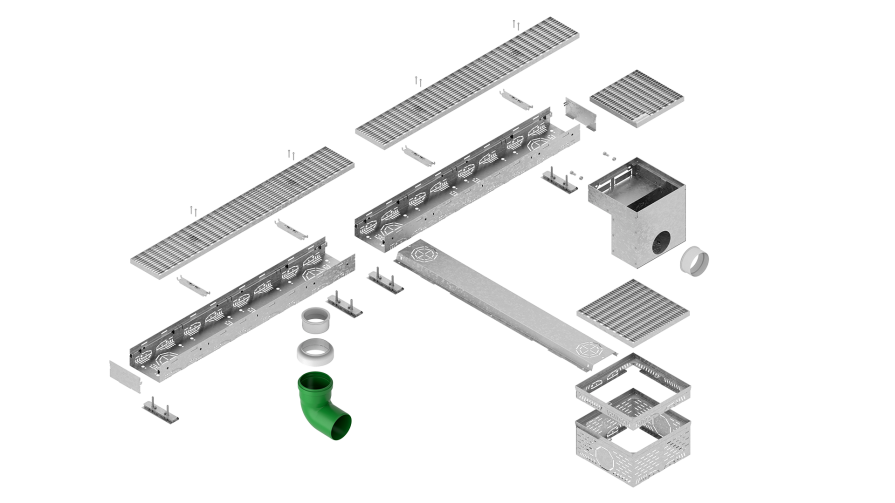

THE SYSTEM IN DETAIL
Optional height adjustment for all widths and heights
End cap for channel opening and end with clip-function for secure locking
Optimal wall anchor function (4x per linear meter)
Connection option cross-intersection (4x per side)
KG sheet
Transition piece for screw socket
Screw socket
Channel made of galvanized steel, stainless steel, in different widths and heights with preperforated punch outs DN/OD 75 and DN/OD 110 for optimal connection possibility
Various grating options, for example slotted grating, mesh grating, perforated grating and longitudinal grating, in these materials: recycled composite, galvanized steel, stainless steel
Locking system for easy connection of channel unit or optional screw fastening of grating, upgradeable at any time
DACHFIX POINT frame element type 150
DACHFIX POINT frame element type 55 and type 70
Grating options DACHFIX POINT, e.g. mesh grating, longitudinal grating
Cross-intersection
DACHFIX drain box made of galvanized steel or stainless steel, for connections in insulated reveal areas
Screw socket for connection to drainbox, also optional for connection in the channel
Grating options for DACHFIX drain box, for example slotted grating, mesh gratings, longitudinal slot grating,
