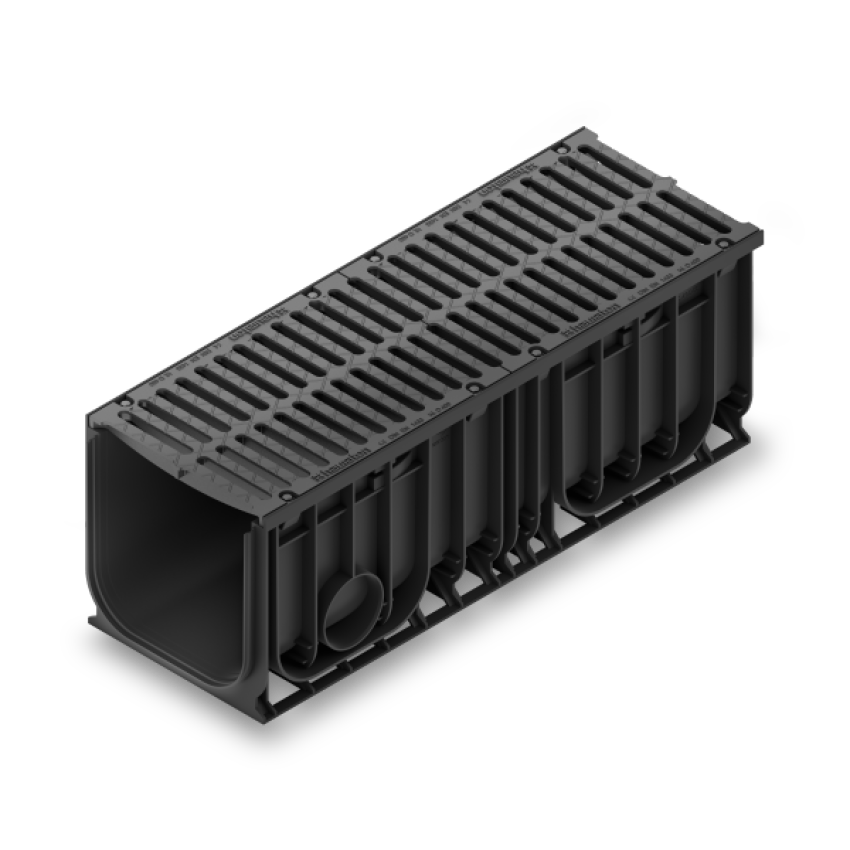

RECYFIX NC heavy duty drainage made of recycled composite

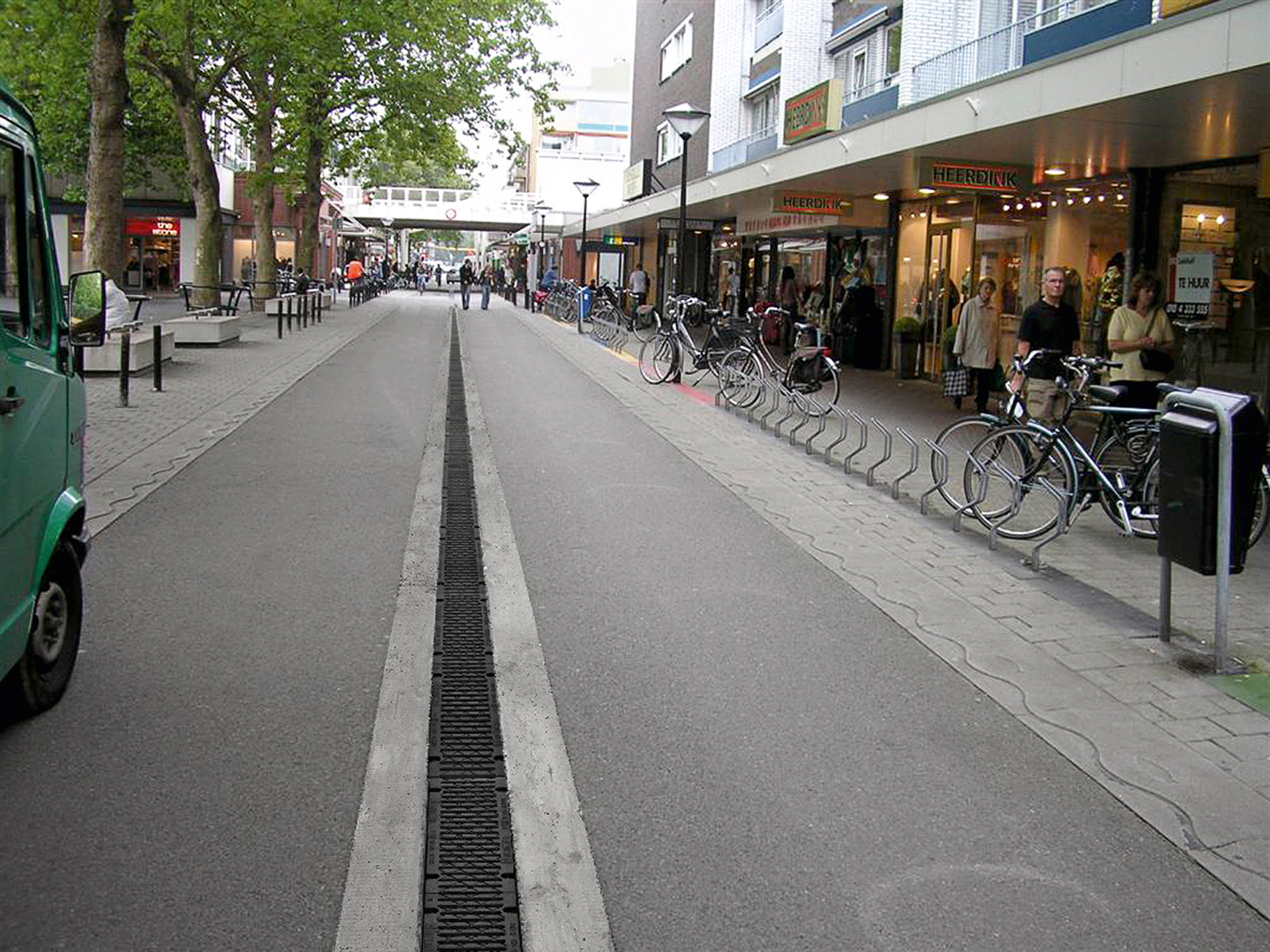

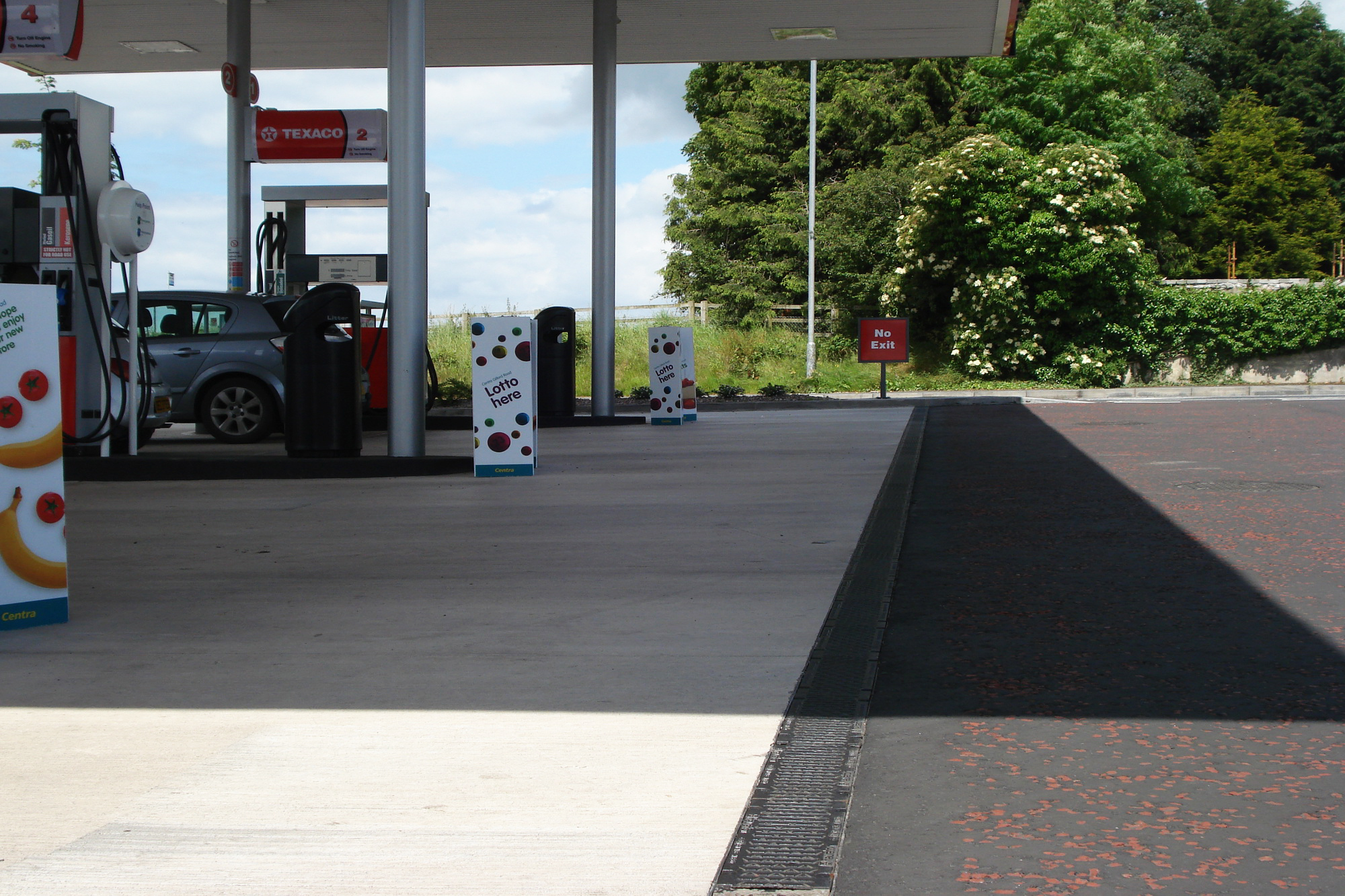

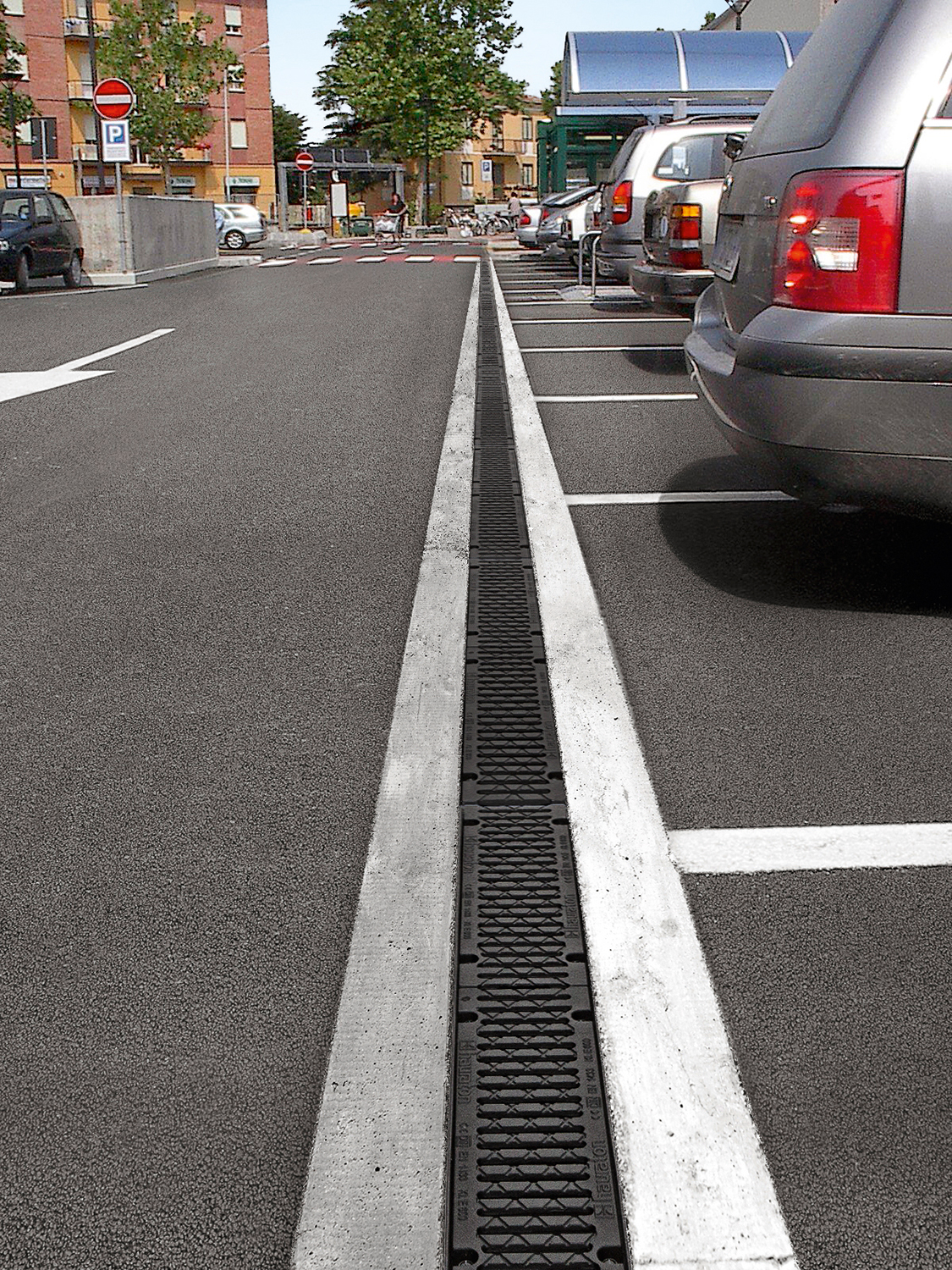

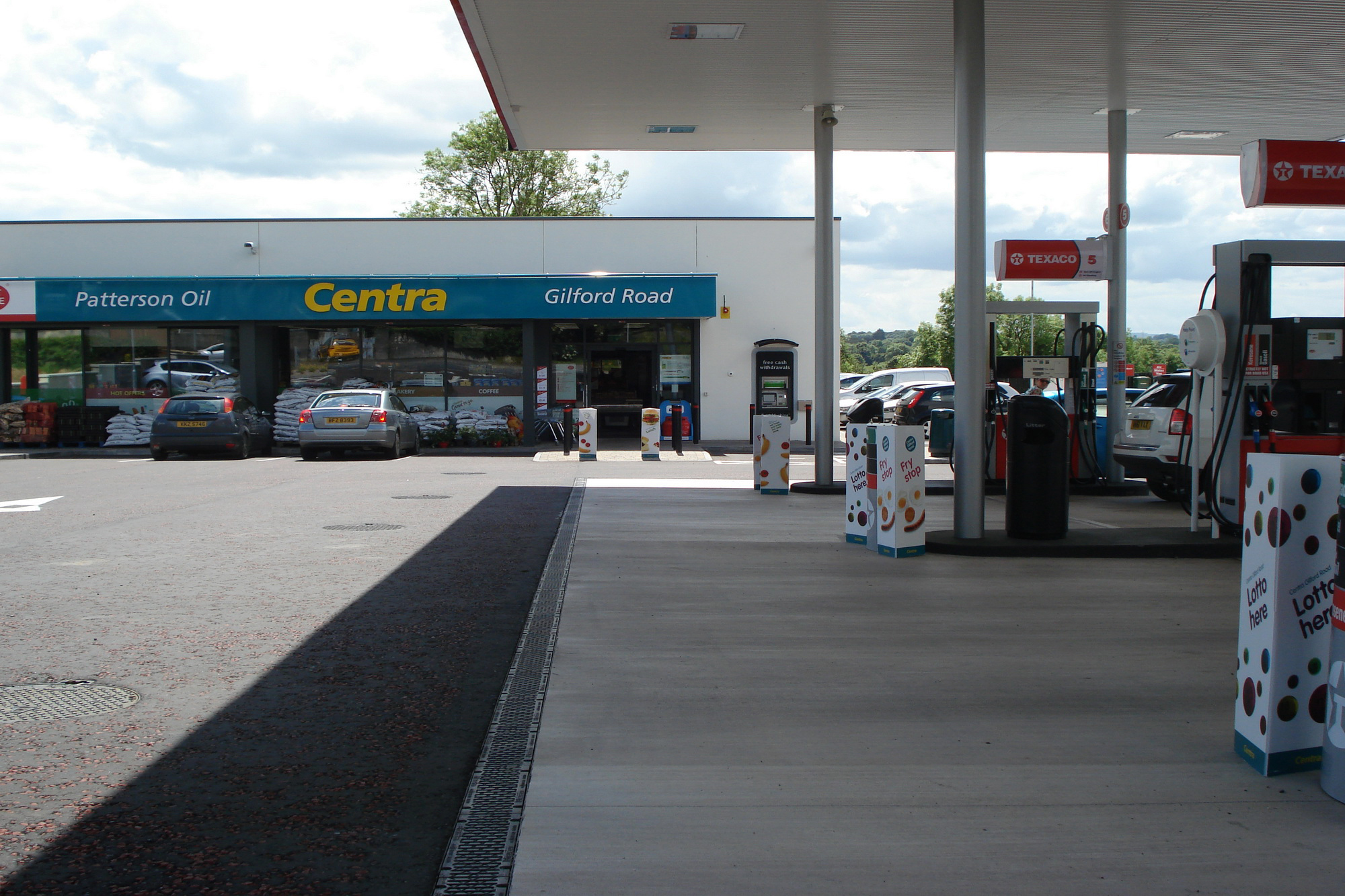

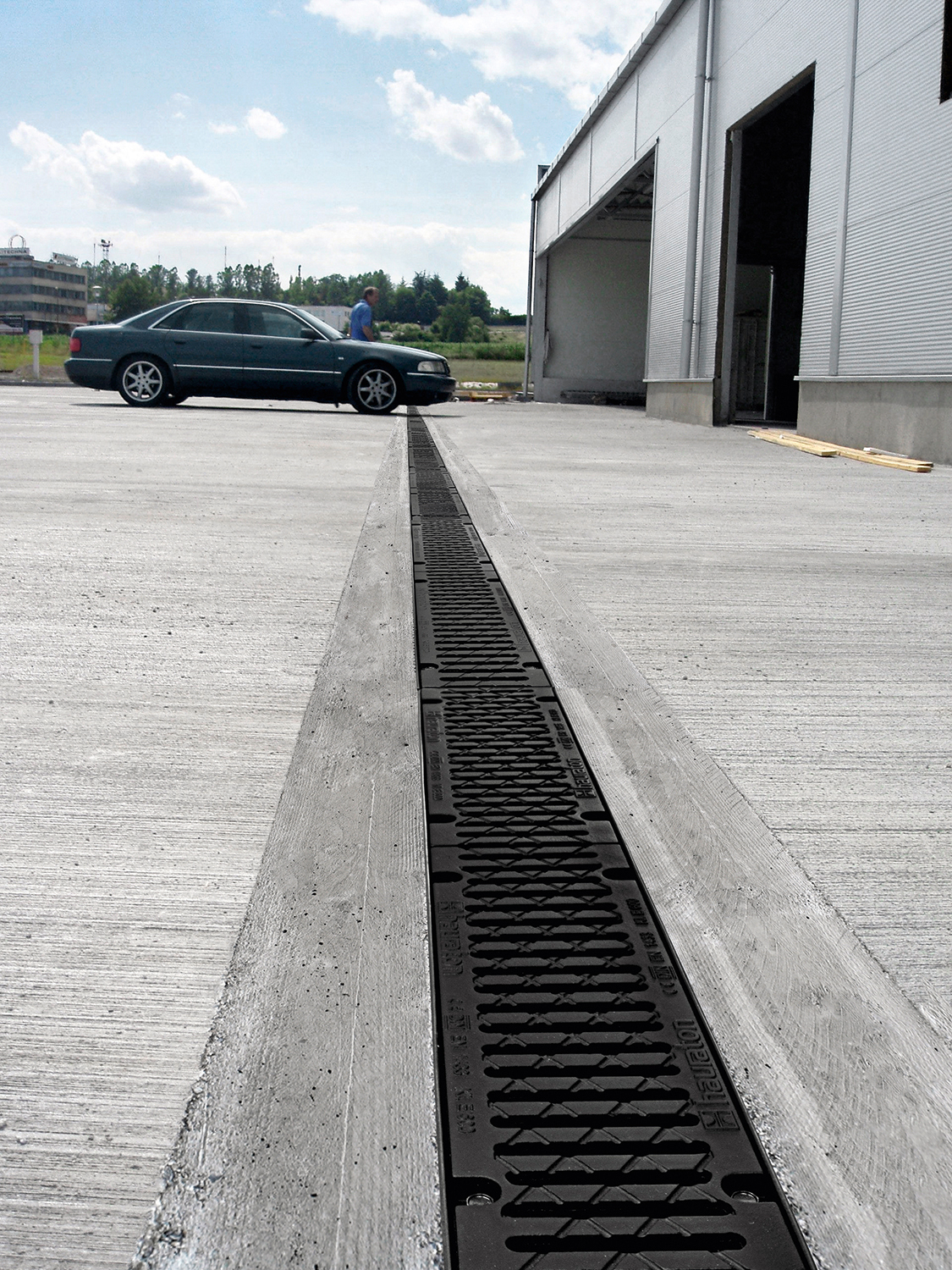

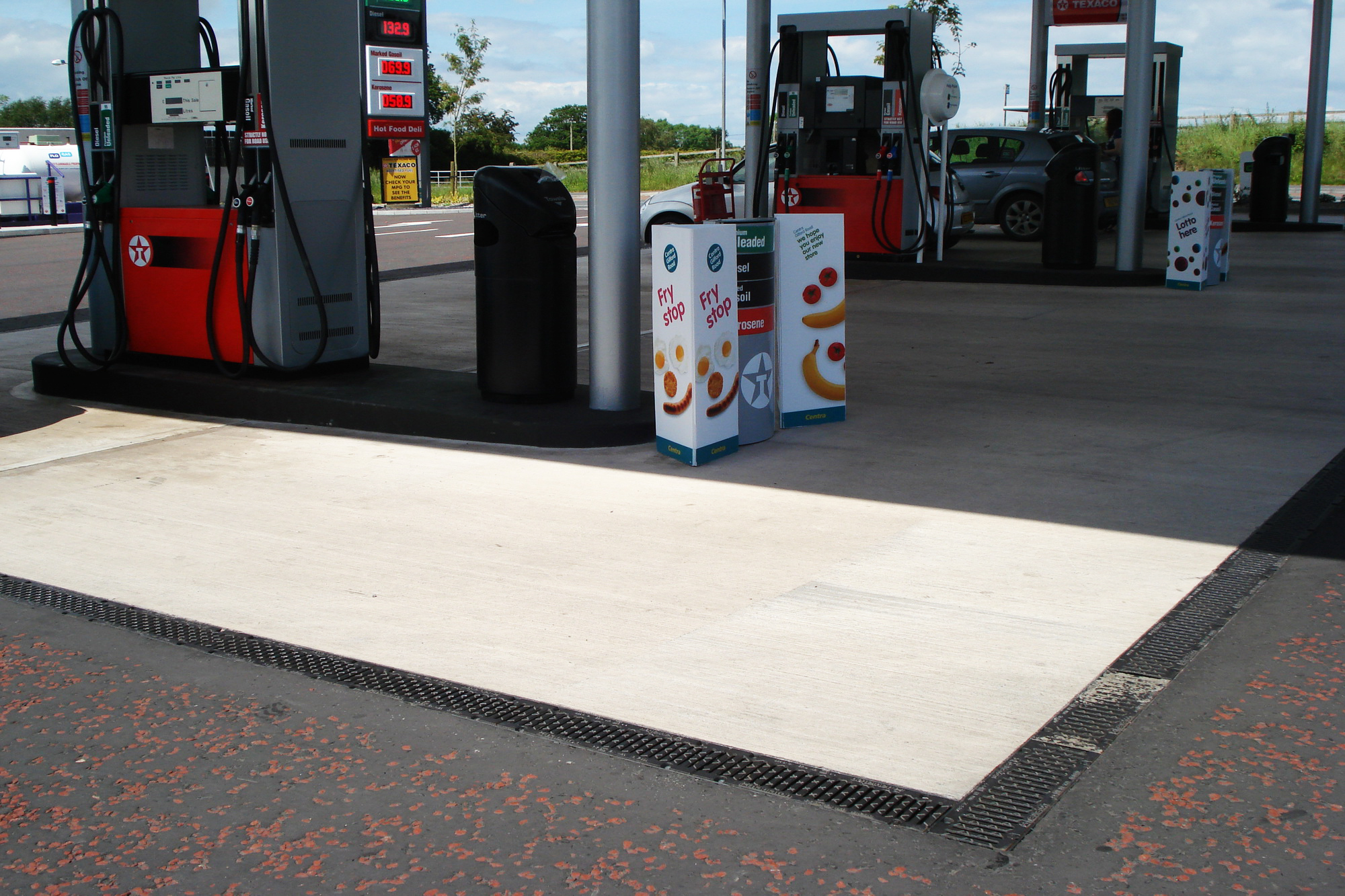

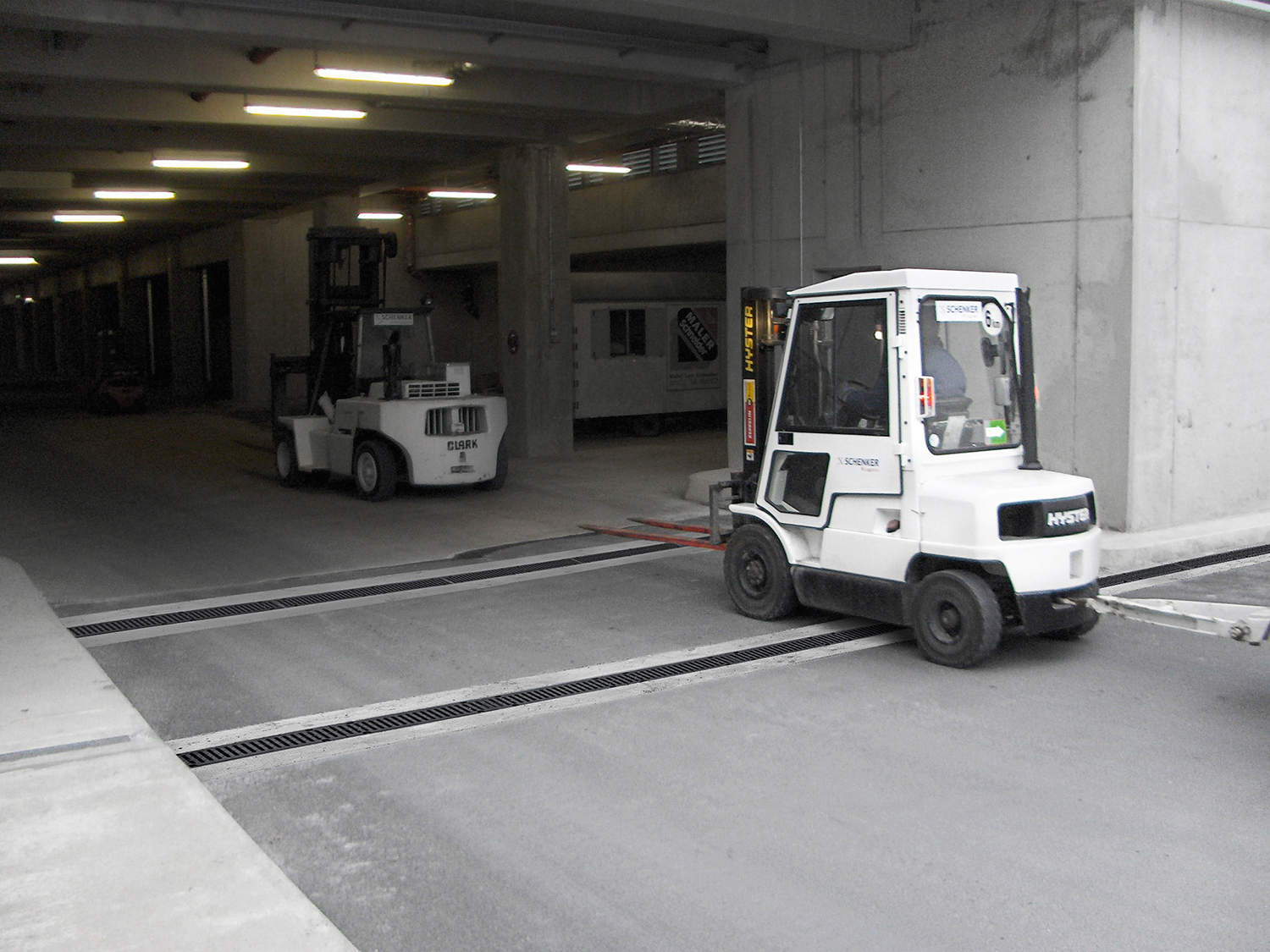

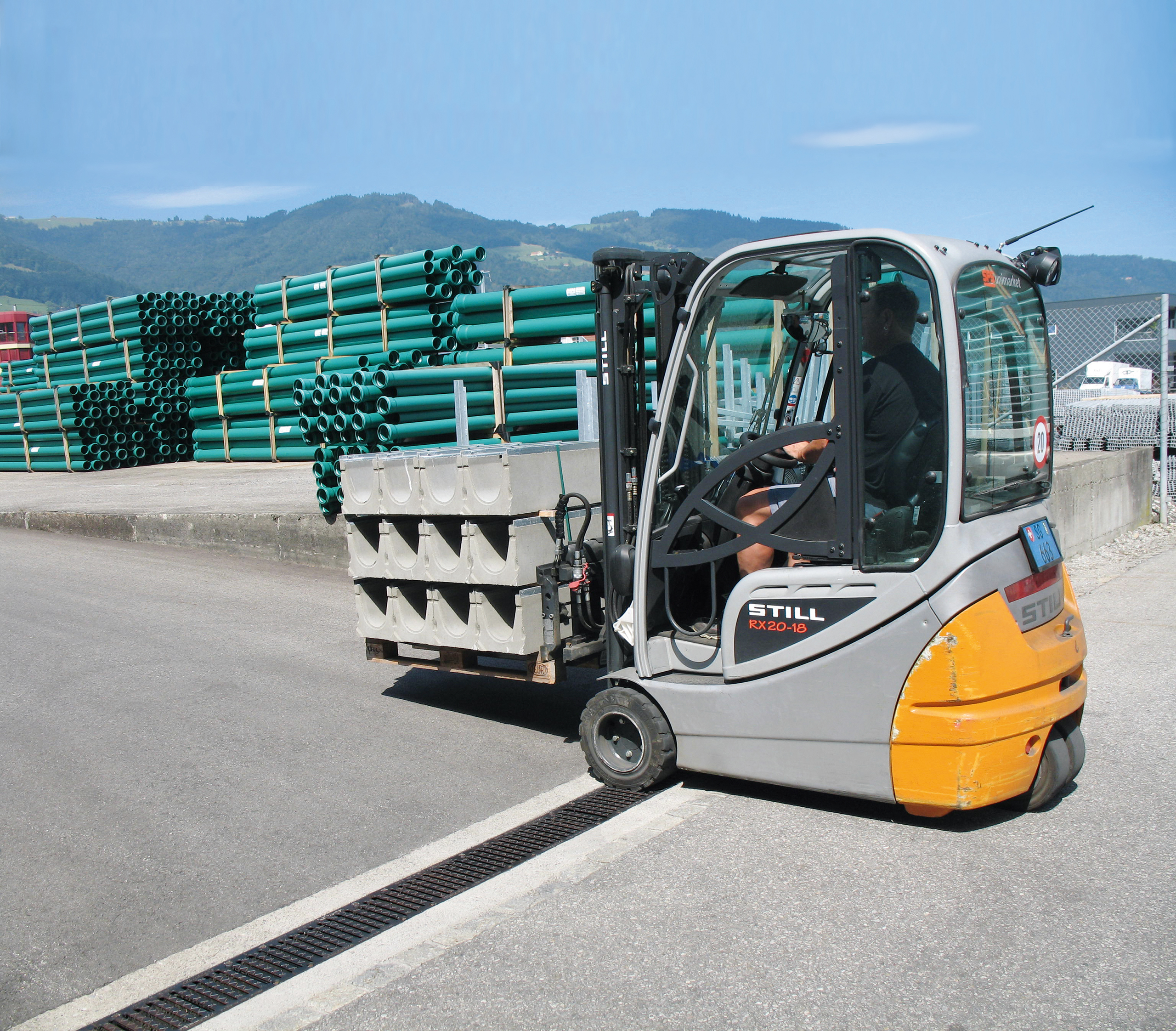

IDEAL FOR: heavy duty applications with higher traffic up to class E 600, such as car parks, industrial estates and petrol stations.
IHRE NUTZEN MIT RECYFIX NC
VERY HIGH STABILITY
- massive ductile iron grating
- RECYFIX®NC 100, 200, 300: load class E 600
- RECYFIX®NC 400: load class D 400
- 8-fold bolted per metre
= Performance assured | Quality assured
INTEGRATED ANGLE HOUSING
- according to EN 1433
- molded as integral part of the channel body (made of PP)
- ridges to stop any lateral movement
= Performance assured
EASY HANDLING ON SITE
- much lighter than channels made of polymer / resin concrete
- easy transport and installation Example (complete system - 1 m channel incl. gratings) NW 100 = 10.7 kg, NW 200 = 20.8 kg
= Time savings | Cost savings
HIGH-GRADE MATERIAL
- RECYFIX® - stable and almost unbreakable
- elastic and especially robust material
- withstands high loads and temperature differences in daily use
- 100 % recycled composite body (and also 100 % recyclable) ---> 100 % environmentally friendly
- 0 % water absorption
- smooth inner surface for superior flow characteristics
- non-conductive
- PP channel body can be cut, drilled and worked easily on site
= Performance assured | Quality assured
HIGH RESISTANCE
- high resistance against frost, de-icing salt and UV-rays
- withstands high temperature differences
- for climate ranges from - 50 °C to + 80 °C and more
= Longevity | Quality assured
PRE-ASSEMBLED READY FOR INSTALLATION
- channel and grating = one part
- no spare parts
- easy handling in stock and on construction site
- cost-efficient transport
= Cost minimisation
SELF-CENTERING BOLT
- the bolt automatically finds the right position
- bolts easily detachable even after years of use
= Cost savings | Quality assured

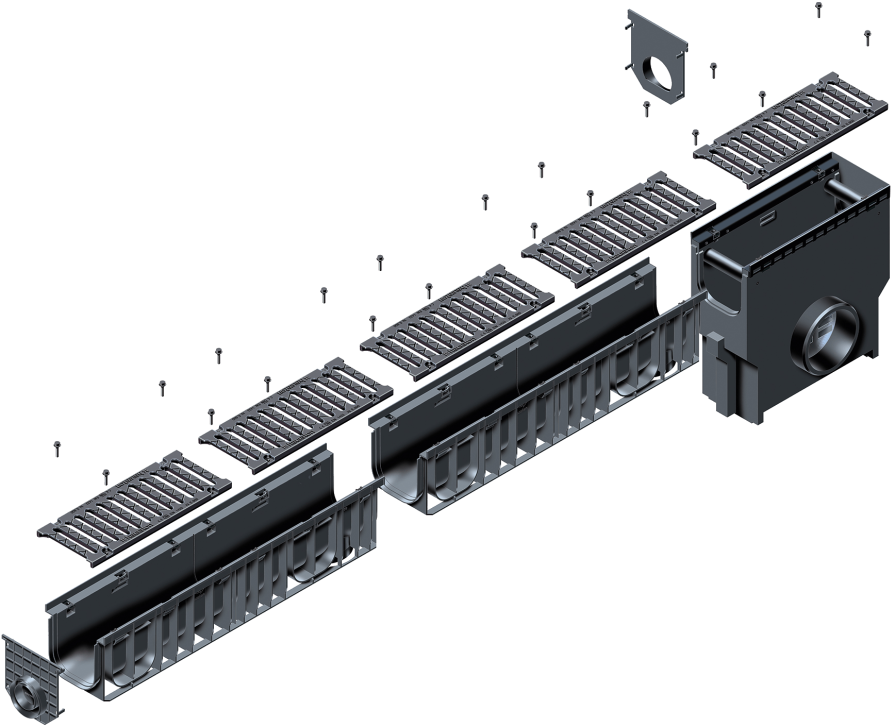

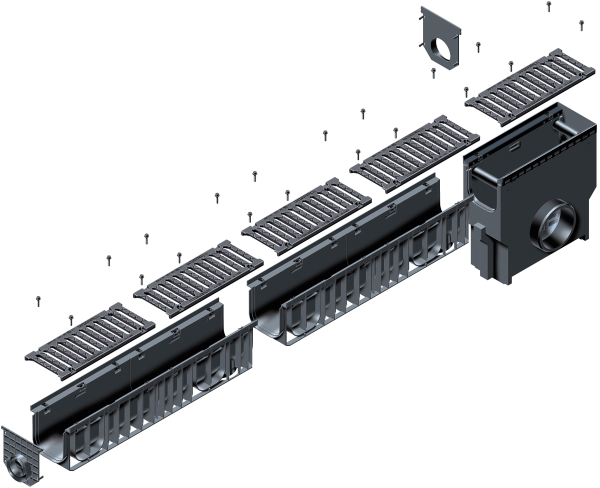

THE SYSTEM IN DETAIL
Channels made of PP with integrated angle housing, according to DIN V 19580 / EN 1433, with groove and tongue connection for exact installation
stable ductile iron grating made of durable spherodial ductile iron
Trash box with 2-sided pipe connection possibilities
End cap closed
End cap with outlet
