Slotted Channels | Drainage for high optical demands
IDEAL FOR: design-sensitive applications, such as areas and facades with high optical demands especially in public and commercial areas.
YOUR BENEFITS WITH SLOTTED CHANNELS
INDIVIDUAL SOLUTIONS
- slotted covers made of: galvanised or stainless steel
- individual slotted covers with modified neck height, crossbars in the slot and more designs possible
- possibility to create a project in uniform design
= Design Flexibility
ATTRACTIVE PRODUCT

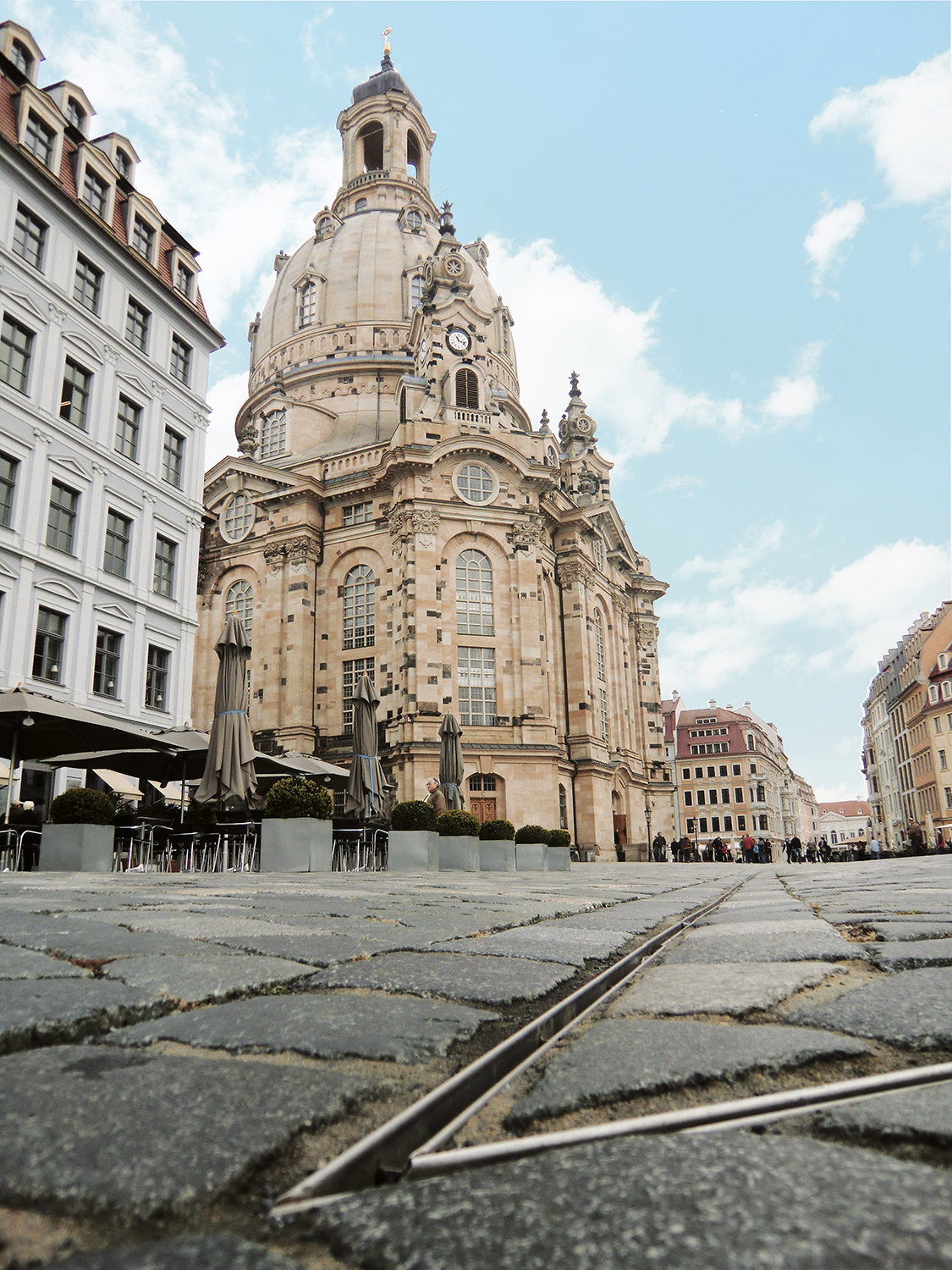

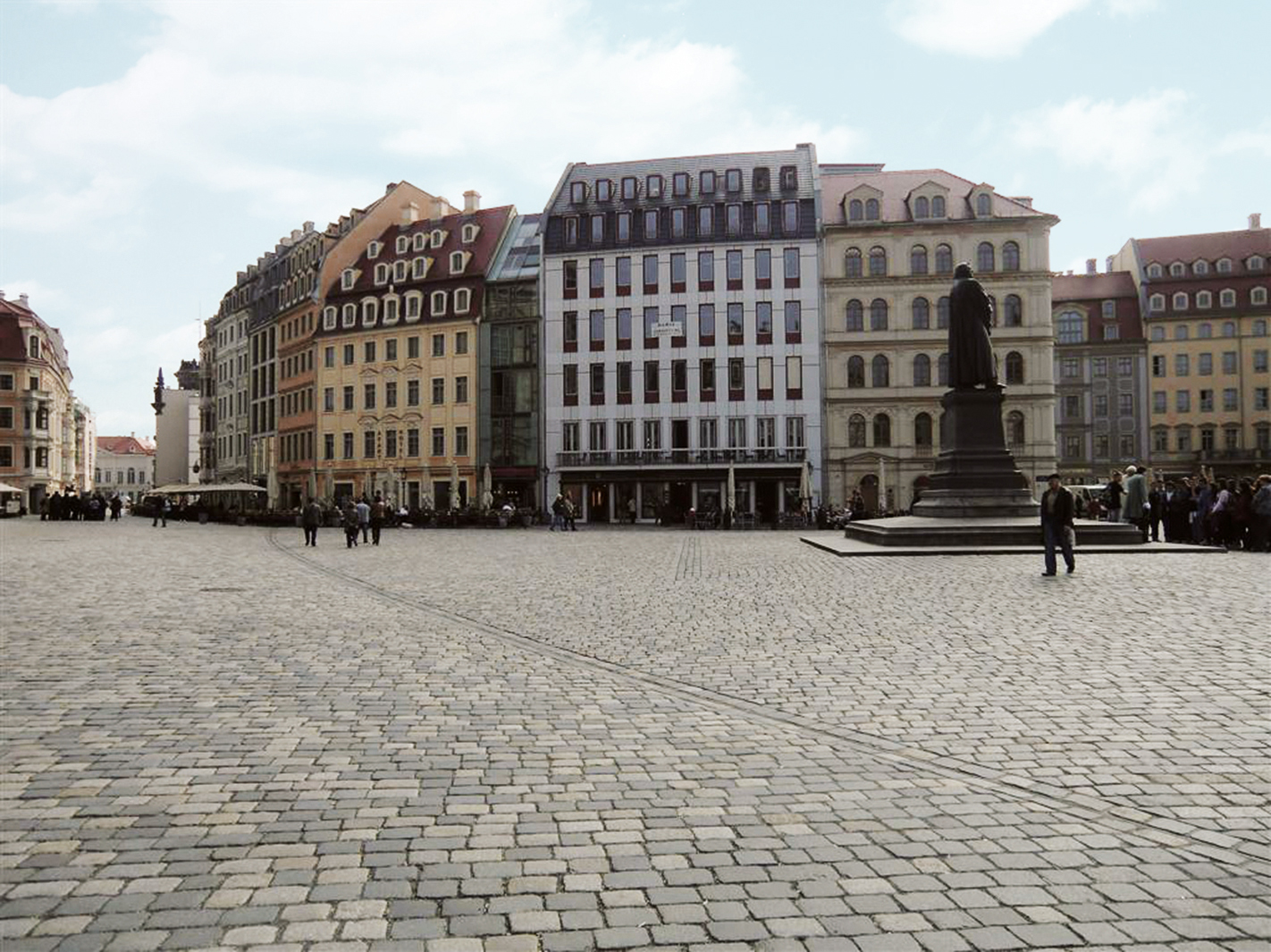

- perfectly designed drainage line blends harmoniously into the appearance of the site
= Uniqueness
TECHNICAL FEATURES OF THE COVERS
- reinforcements under the cover and material thickness provide perfect balance between weight and stability
- class D 400 material thickness 4 mm
- slotted covers are riveted ---> no rusting of welded joints
- especially stable
- surface water is drained reliably
= Longevity
HIGH-LEVEL FUNCTIONALITY AND EASY INSTALLATION
- quick access to channel run through removable access cover
- easy handling and installation
= Time savings | Cost savings
CONNECTION POSSIBILITIES
- access covers fit on both channels and trash boxes
- easy preparation of corner connections possible
- pavable access cover
- processing of all standard surface layers and stone slabs possible
= Design Flexibility
THE SYSTEM IN DETAIL

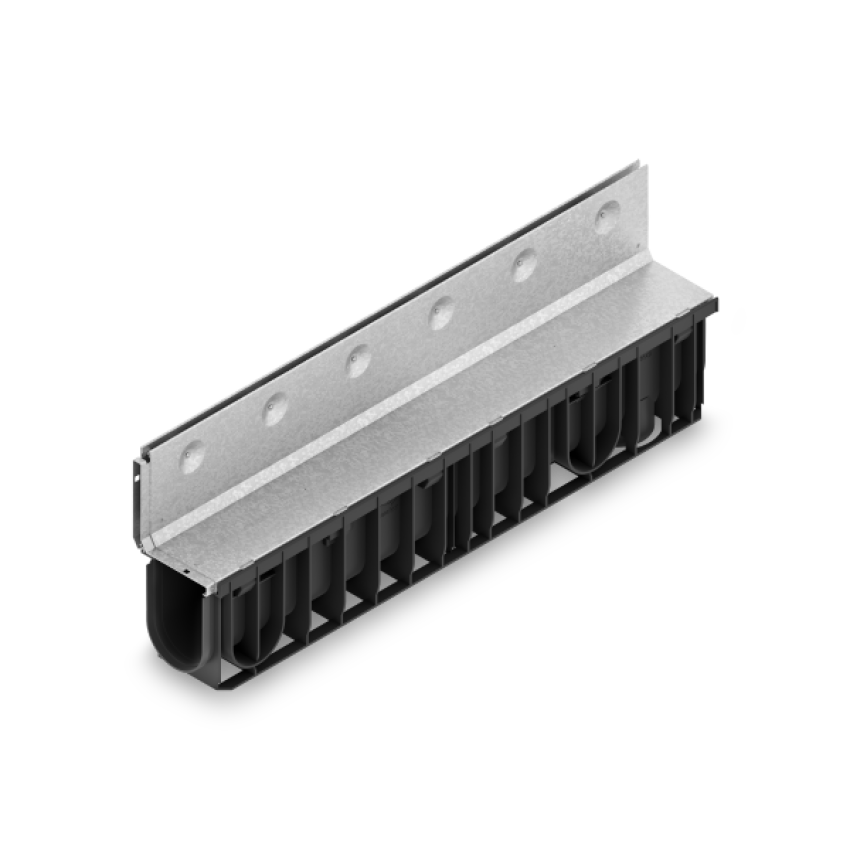

Asymmetrical covers made of galvanised or stainless steel. With integrated push connector for precise slot guidance on the surface.
End cap with outlet
Channels made of PP or fibre reinforced concrete in nominal sizes 100 and 150, with groove and tongue connection for exact installation
Trash box with pipe connection possibility, with fitting access cover
End cap with outlet
