DRAINFIX TWIN infiltration rainwater | low traffic
IDEAL FOR: infiltration with high volumes of rainwater in low-traffic areas in private and public areas.
YOUR BENEFITS WITH DRAINFIX TWIN
HIGH STORAGE CAPACITY
- with combinable elements
--> double volume - large retention volume offers
considerable room for sudden precipitation
= Performance assured
SPACE-SAVING DESIGN
- reduced time and effort on site and space requirements by 2/3 - compared to conventional gravel trenches
- area remains completely usable for other purposes:
--> depending on the installation situation, the load capacity ranges from pedestrian accessible to SLW 30 (car) - optimised transport:
--> 32 elements stacked on a Euro pallet = storage volume of approx. 8.1 m
= Cost savings
FLEXIBLE APPLICATION VIA COMPLETE SYSTEM SOLUTION
= Performance assured | Quality assured
FLEXIBLE APPLICATION VIA COMPLETE SYSTEM SOLUTION
- DRAINFIX TWIN elements
- end cap:
with variable connection options via pipe outlet - DRAINFIX multifunction shaft:
for inspection or filtering
= Performance assured | Quality assured
UNIQUE COMBINATION POSSIBILITY
- six different combinations with the two basic elements DRAINFIX TWIN 1 and DRAINFIX TWIN 0
- the elements are optimally combined according to soil conditions and requirements

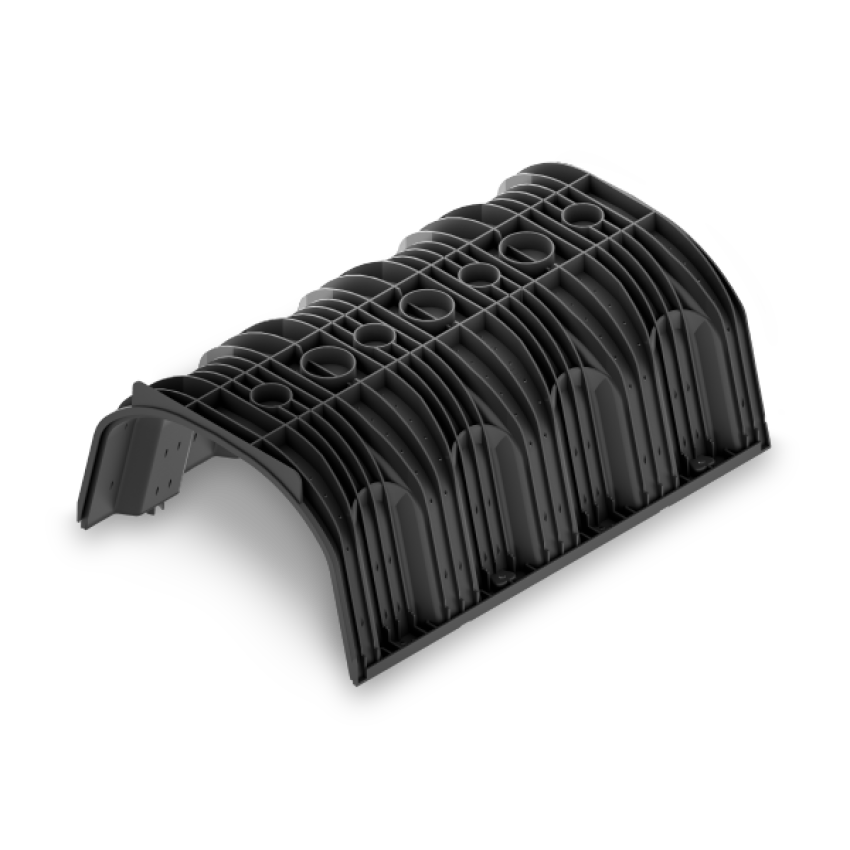

- DRAINFIX TWIN element 1:
with drainage holes for retention and infiltration
--> application for high and medium ground water level - DRAINFIX TWIN element 0:
without drainage holes
--> use under sealed surfaces or for installation without special gravel packing
= Design Flexibility | Uniqueness
QUICK INSTALLATION & EASY HANDLING ON SITE
- DRAINFIX TWIN elements made of PP recycled composite
--> low weight - design enables easy joining of the elements
--> modular system - expandable as needed
- flexible installation arrangement due to variable combination
= Time savings | Cost savings

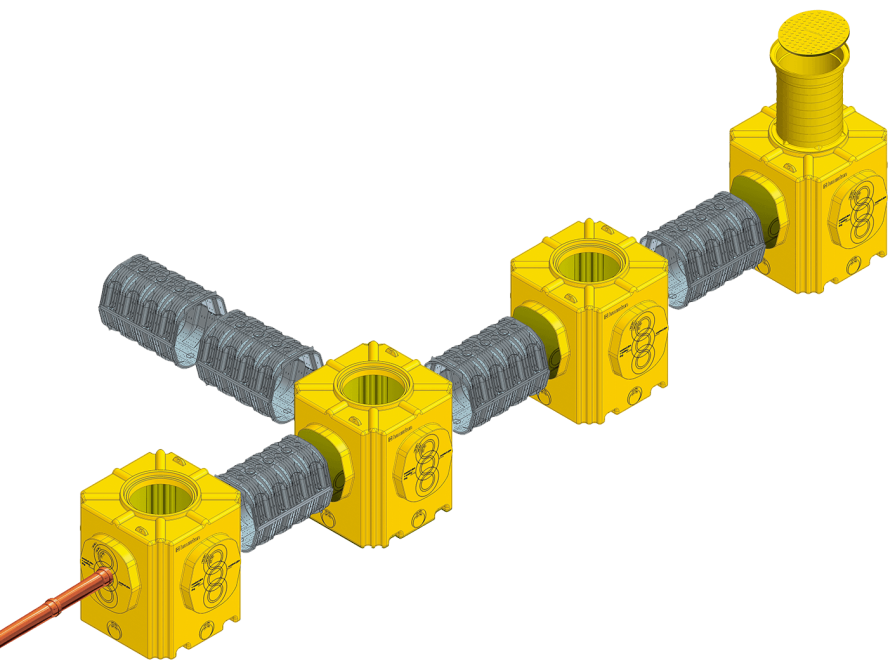

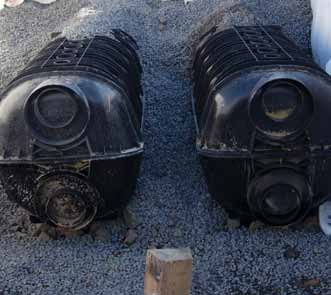

THE SYSTEM IN DETAIL
Shaft made of PE
DRAINFIX®TWIN 1/1, made of PP, with drainage perforations for infiltration and retention of surface water
Optional shaft heightening
Cover in class A 15, made of PE, for plastic shaft or shaft heightening. Alternatively, a ductile iron cover with class D 400 can be used.
Pipe connection for inlet and outlet in different sizes
